DH180B Multifunctional Rock Bolting Rig
  • Horizontal lifting height: 4m
  • Motor power: 180kW
  • Overall weight: 17,500 kgs
Description
Summary
DH180B multifunctional rock bolting rig is a crawler type multi-function drilling rig, mainly used in power station, highway and railway mountain slope anchor cable reinforcement, tunnel pipe shed advance support, foundation pit cabling, anti-floating anchor installation, ground source heat pump well, roadbed reinforcement, hydropower dam foundation and dam body seepage treatment, drainage holes, mine and quarry blasting holes, micro pile holes and other projects. It is especially suitable for deep hole and pipe drilling in drifters, eggs, gravel formations and crushed and strongly weathered rock covered formations, especially equipped with rope coring function. Equipped with single pipe grouting and double liquid grouting, it can be used for large-caliber emergency construction in caves. The bolting rig can achieve quick drilling through complex strata.
Characteristic
· Long distance geological prediction
· Pipe shed, anchoring, emergency high gas tunnel construction
· Anti-outburst and grouting
parameter

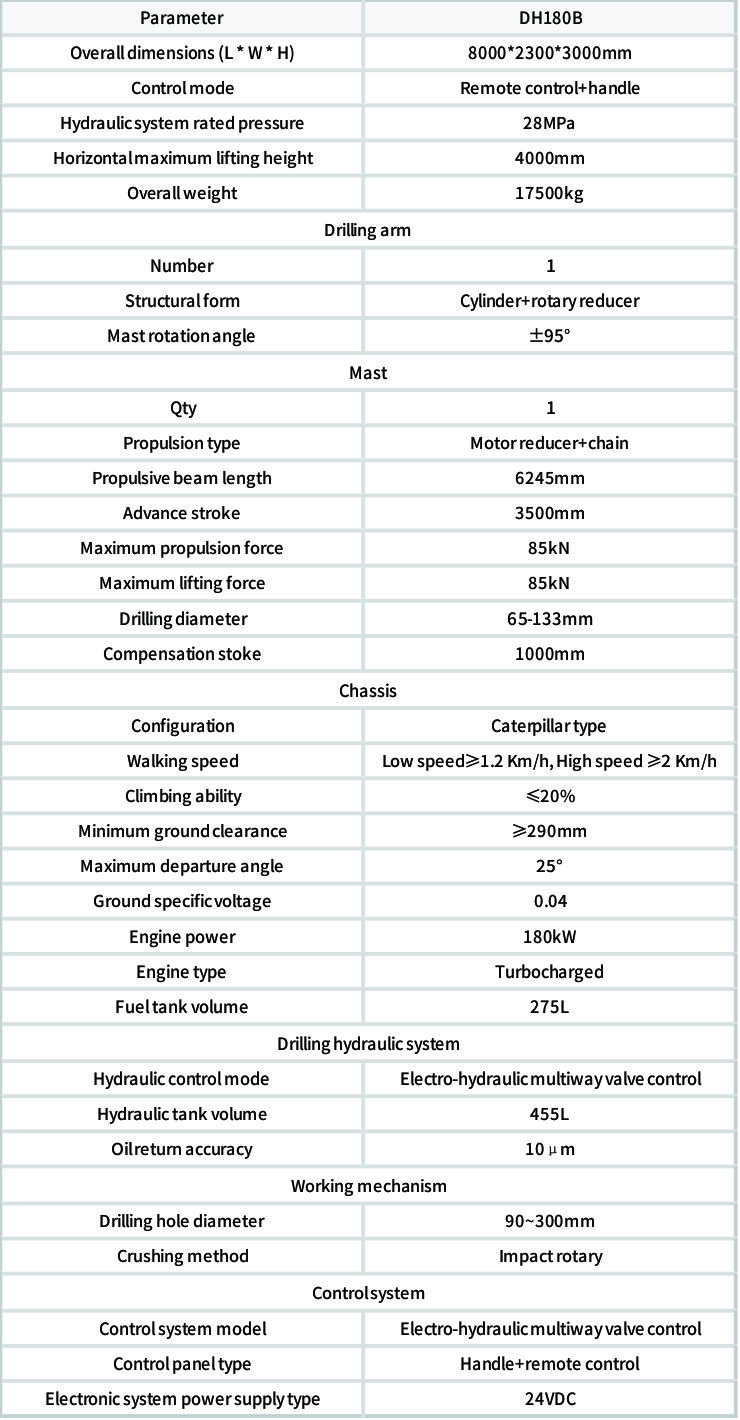

ParameterDH180B
Overall dimensions (L * W * H)8000*2300*3000mm
Control mode Remote control + handle
Hydraulic system rated pressure28MPa
Horizontal maximum lifting height4000mm
Overall weight17500kg
Drilling arm
Number1
Structural formCylinder + rotary reducer
Mast rotation angle±95°
Mast
Qty1
Propulsion typeMotor reducer + chain
Propulsive beam length6245mm
Advance stroke3500mm
Maximum propulsion force85kN
Maximum lifting force85kN
Drilling diameter

65-133mm

Compensation stoke1000mm
Chassis
ConfigurationCaterpillar type
Walking speedLow speed ≥1.2 Km/h, High speed ≥2 Km/h
Climbing ability

≤20%

Minimum ground clearance≥ 290mm
Maximum departure angle25°
Ground specific voltage0.04
Engine power180kW
Engine typeTurbocharged
Fuel tank volume275L
Drilling hydraulic system
Hydraulic control modeElectro-hydraulic multiway valve control
Hydraulic tank volume455L
Oil return accuracy10μm
Working mechanism
Drilling hole diameter90~300mm
Crushing methodImpact rotary
Control system
Control system modelElectro-hydraulic multiway valve control
Control panel typeHandle + remote control
Electronic system power supply type24VDC
