Model

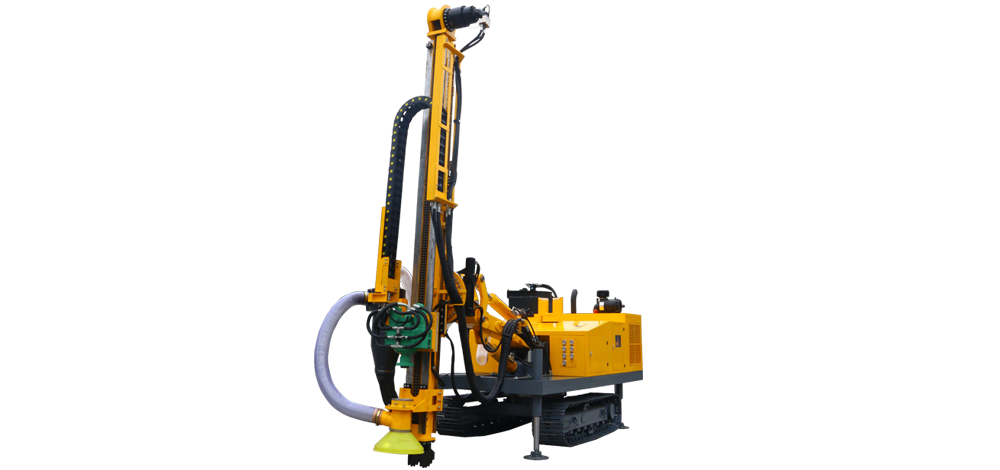

ZML161 Multi Function Crawler Drill Rig
  • Horizontal lifting height: 4.1m
  • Compensation stroke: 10000mm
  • Overall weight: 10,500 kgs
Description
Summary
ZML161 multi function crawler drill rig is equipped with a center turntable for multi-station drilling. Horizontal lift 4M, diesel engine drive, with dry dust removal method. Piston variable pump and load feedback system have the functions of power protection and pressure cut-off. The construction angle display ensures the perpendicularity of drilling. Full hydraulic control system, remote control, easy and reliable operation.
Characteristic
· Suitable for a variety of drilling techniques, such as underground hole and pipe drilling, water pipe sleeve drilling, rotary impact, auger drilling, which can effectively solve the problems of the formation of holes in loosely covered strata, · · pebble layer, broken strata.
· Pilot valve and variable piston pump with load feedback system, with power protection and pressure cut-off function.
· Horizontal lifting height 3.5 meters, the chassis and the mast can be rotated 360 degrees, and the two hydraulic legs ensure the smooth and safe construction.
· Power head stroke is 4 meters, and the drill pipe can be installed from 1 to 3 meters, and the two gears can be switched between high and low speed.
· Optional gripper, removable drill pipe, saving labor costs.
· Wind and water linkage device (option) for dust removal, to form a good working environment.
· Strong drilling ability, wide range of application, long process, fast drilling speed, easy to deal with accidents, high drilling efficiency.
parameter


ParameterZML161
Overall dimensions (L * W * H)7100*2450*2900mm
 Control mode Remote control + handle
 Hydraulic system rated pressure25MPa
 Horizontal maximum lifting height4100mm
Overall weight10500kg
Drilling arm
 Number1
Structural formCylinder + rotary reducer
 Mast rotation angle±180°
 Mast
Qty1
 Propulsion typeMotor reducer + chain
 Propulsive beam length6320mm
Advance stroke3390mm
 Maximum propulsion force85kN
 Maximum lifting force85kN
Applicable drill pipe specification

Φ76-89×1500-3000mm

Compensation stoke1000mm
Chassis
ConfigurationCaterpillar type
Walking speedLow speed ≥1.2 Km/h,  High speed ≥2 Km/h
Climbing ability

≤36%

 Platfrom turning angle360°
Minimum ground clearance≥ 270mm
 Maximum departure angle25°
Ground specific voltage0.04
Engine power73.5kW
 Engine typeTurbocharged
 Fuel tank volume200L
Drilling hydraulic system
Hydraulic control modeElectro-hydraulic multiway valve control
 Hydraulic tank volume455L
Oil return accuracy10μm
 Working mechanism
Drilling hole diameter90~300mm
 Crushing methodImpact rotary
 Power head output speed35~70rpm
Power head output maximum torque6000N.m
Control system
 Control system modelElectro-hydraulic multiway valve control
Control panel type Handle + remote control
Electronic system power supply type24VDC
