Model

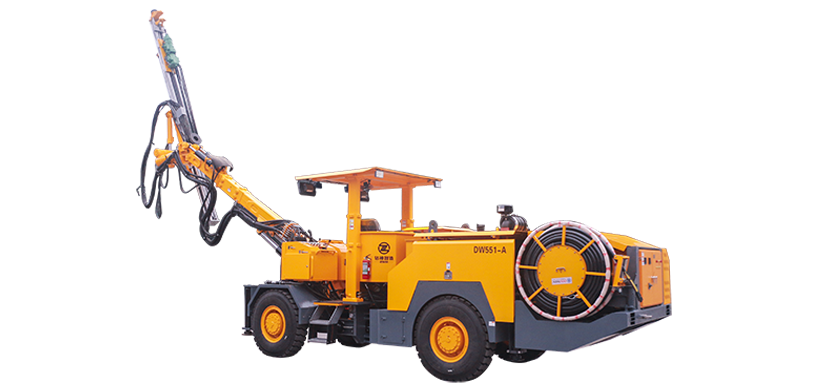

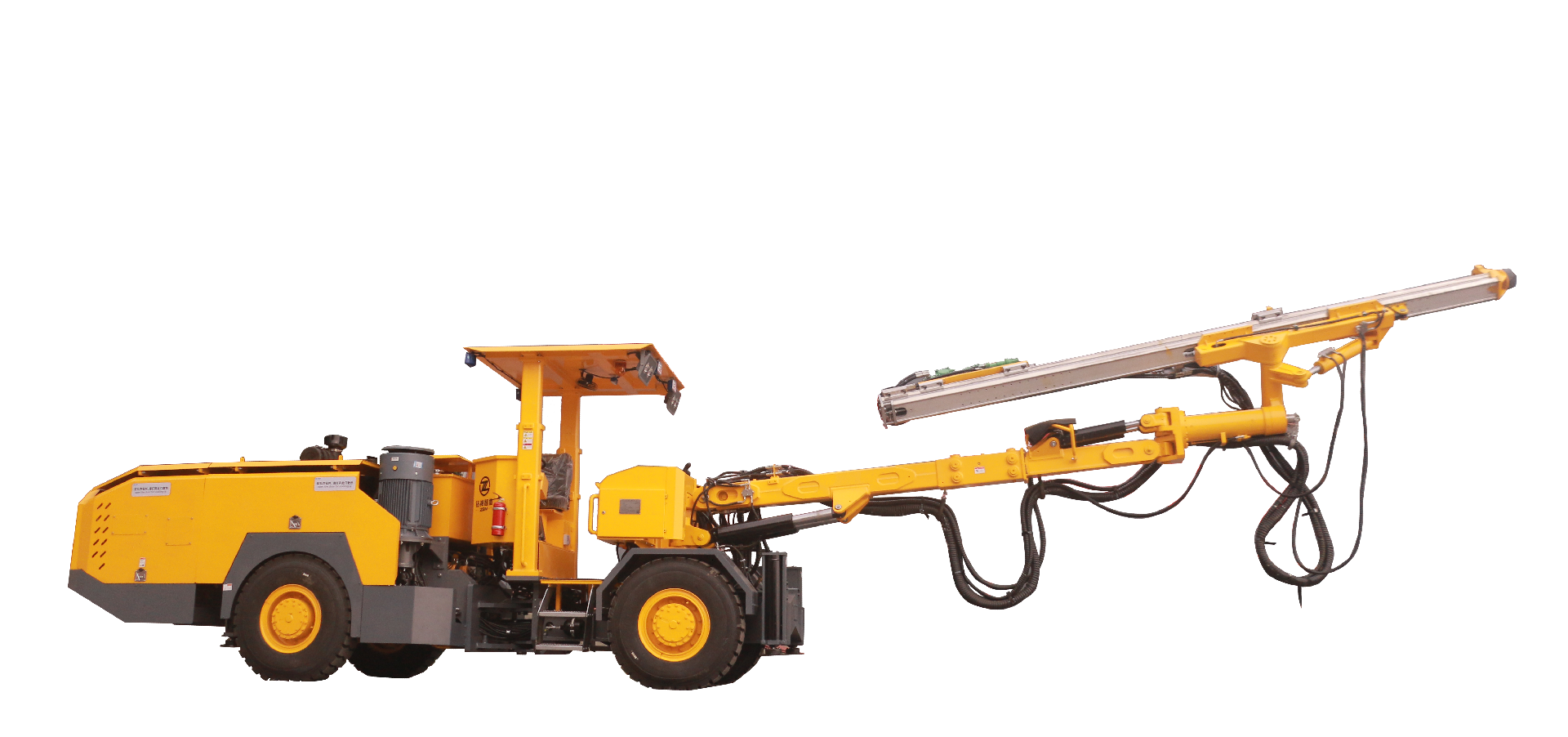

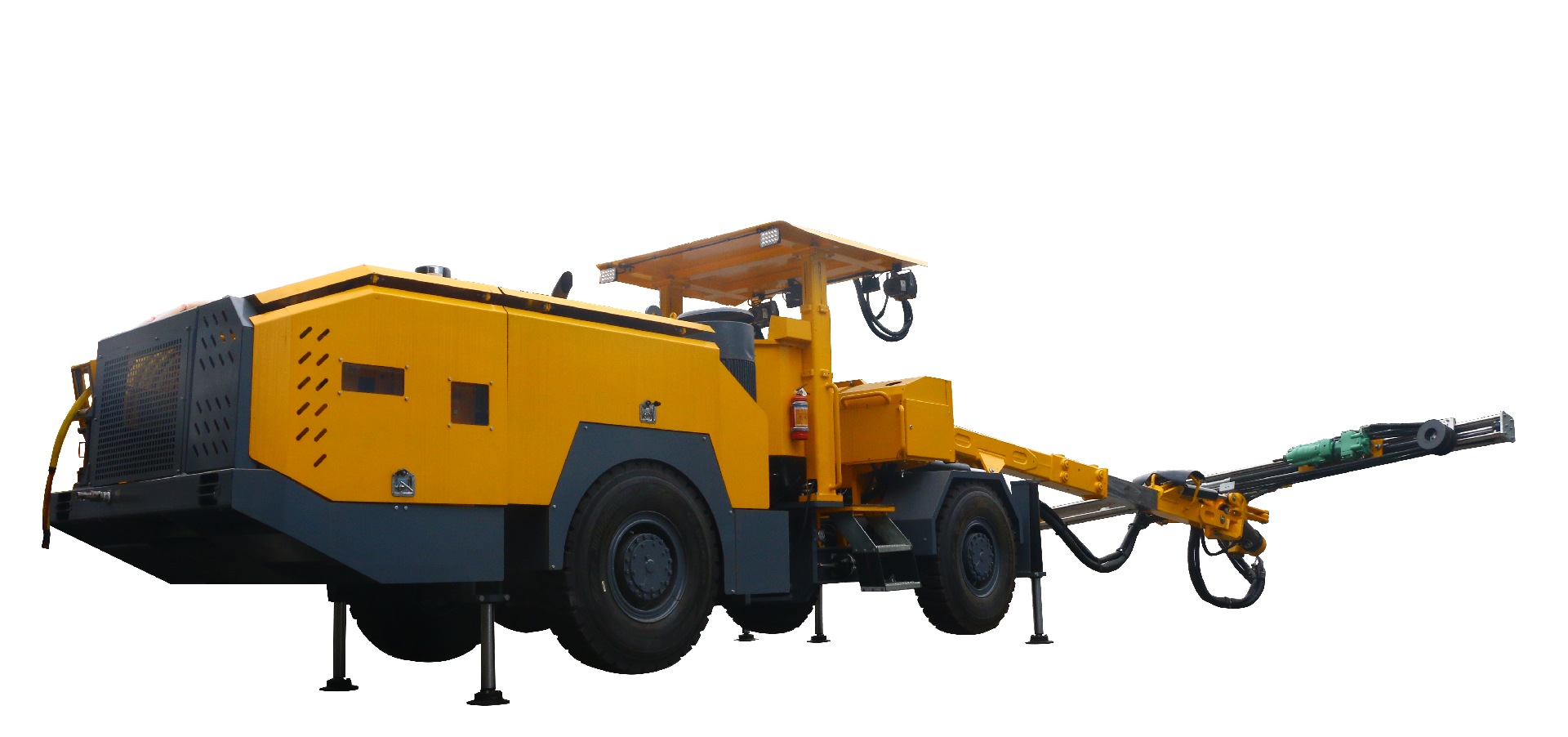

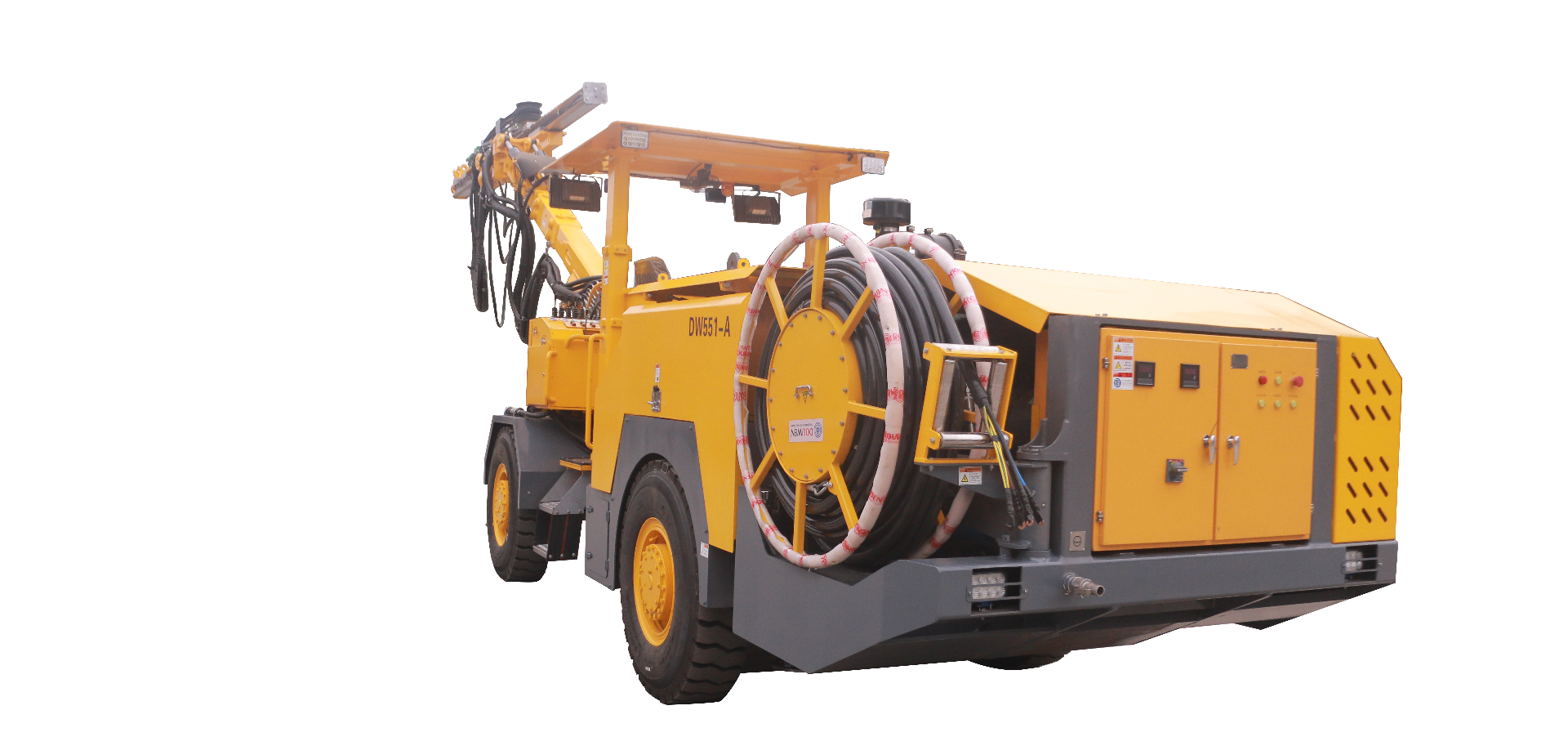

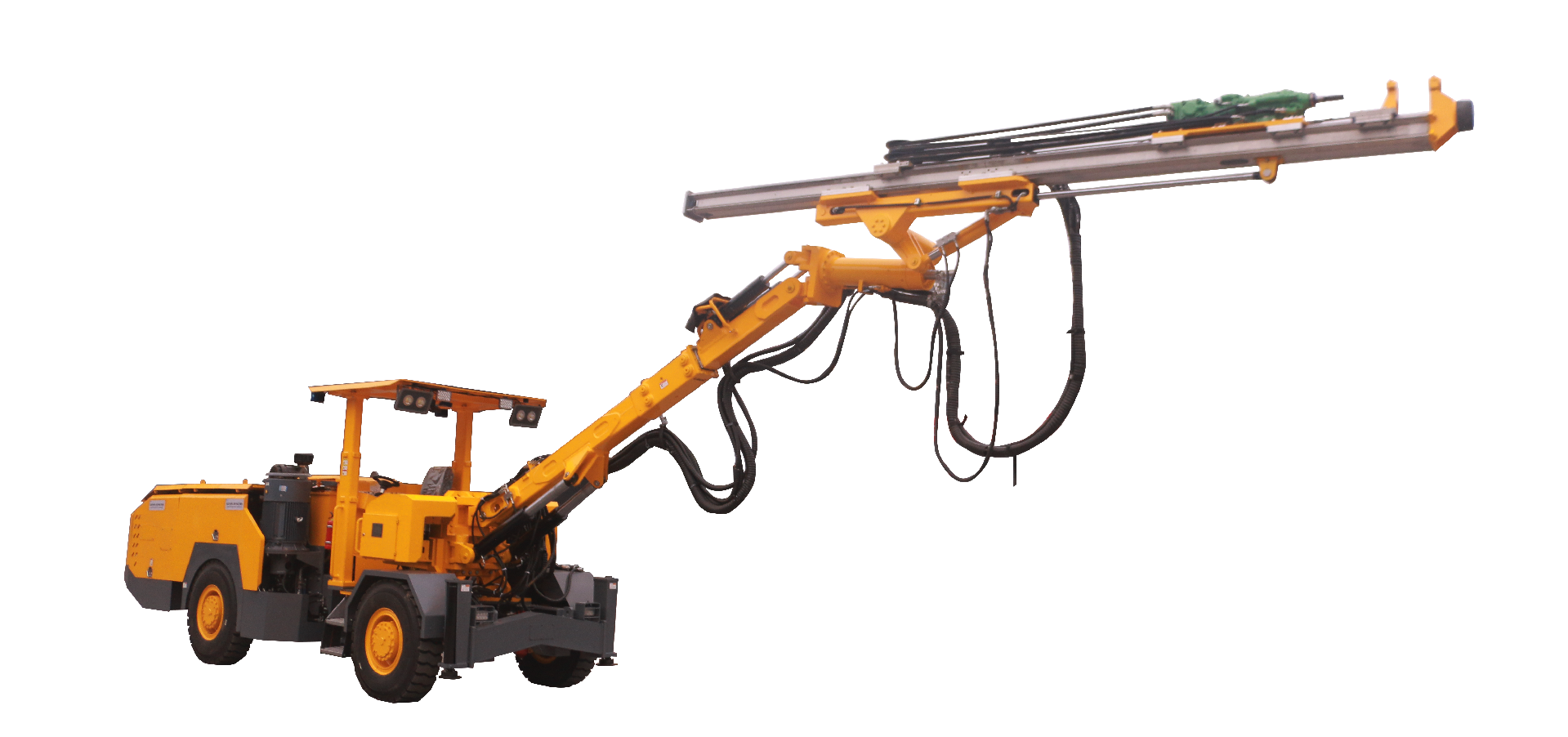

DW551 Rock Drilling Jumbo

  • Motor power: 55kw
  • Drilling diameter: φ43mm-φ89mm
  • Overall weight: 14500kg
mining tunneling
inquiry
mining_and-tunneling rock_drilling_jumbo
Data download
underground_drilling_rig rock_bolting_rig
Find nearby distributor
Description
Summary
DW551 rock drilling jumbo is applicable in blast holes drilling, anchor holes drilling, cutting holes drilling, advance grouting holes drilling, pipe shed construction, charging, anchor bolts installation, wind pipes installation and other high altitude operations in the fields of mines, hydroelectric power, railways, highways and other fields.
Characteristic
· The highest working altitude is 4000m.
· The temperature of the working environment is from -20° to 45°.
· Can work normally in dusty and moist tunnels and underground environments.
· Tunnel engineering:
1.Tunnel: Blast hole, rock openhole
2.Tunnel: Drainage gas and water
3.Underground tunnel excavation
4.Excavation of single double line tunnel of railway and highway
5.Tunnel gas discharge hole
parameter
dydraulic_drilling_jumbo
View online

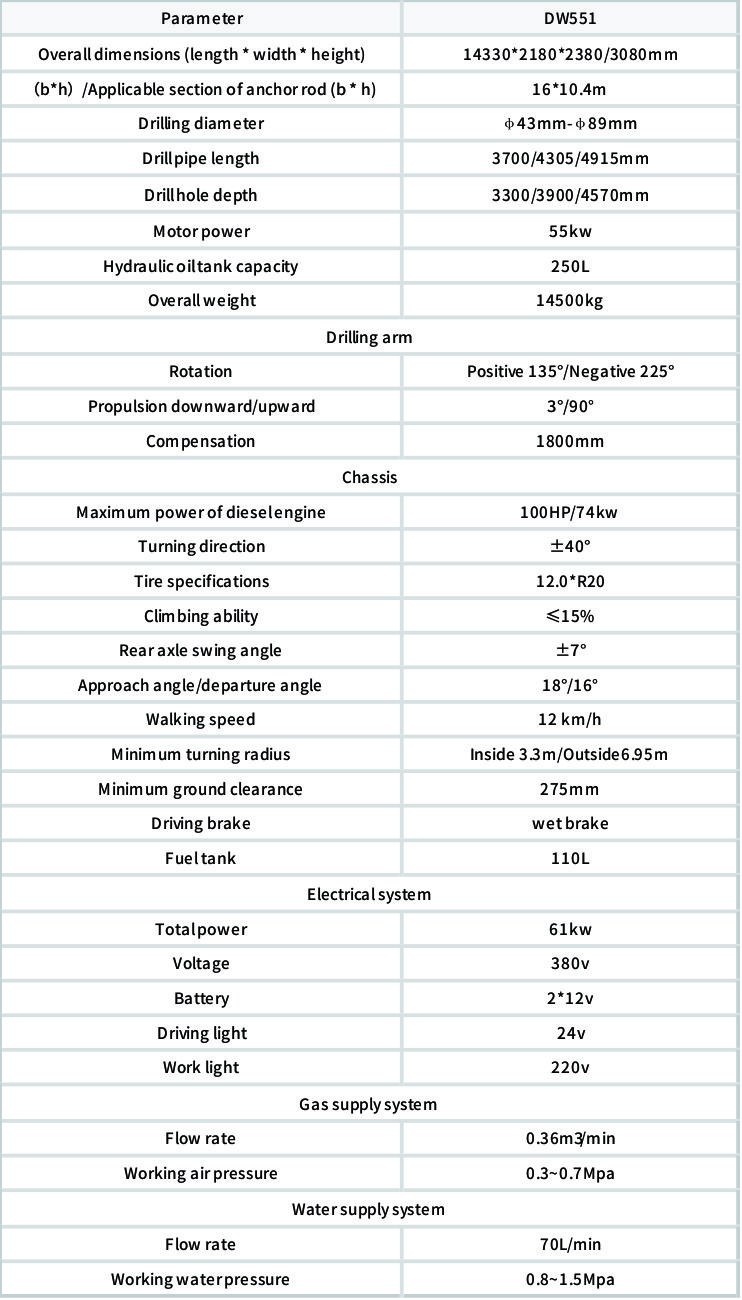

ParameterDW551
Overall dimensions (length * width * height)14330*2180*2380/3080mm
Applicable section of anchor rod (b * h)16*10.4m
Drilling diameterφ43mm-φ89mm
Drill pipe length3700/4305/4915mm
Drill hole depth3300/3900/4570mm
Motor power55kw
Hydraulic oil tank capacity250L
Overall weight14500kg
Drilling arm
Rotation正/Positive 135°/反/Negative 225°
Propulsion downward/upward3°/90°
Compensation1800mm
Chassis
Maximum power of diesel engine100HP/74kw
Turning direction±40°
Tire specifications12.0*R20
Climbing ability≤15%
Rear axle swing angle±7°
Approach angle/departure angle 18°/16°
Walking speed12 km/h on a horizontal road
Minimum turning radius Inside 3.3m/ outside6.95m
Minimum ground clearance275mm
Driving brakeWet brake
Fuel tank 110L
Electrical system
Total power61kw
Voltage380v
Battery 2*12v
Driving light 24v
Work light 220v
Gas supply system
Flow rate0.36m³/min
Working air pressure 0.3~0.7Mpa
Water supply system
Flow rate70L/min
Working water pressure0.8~1.5Mpa
